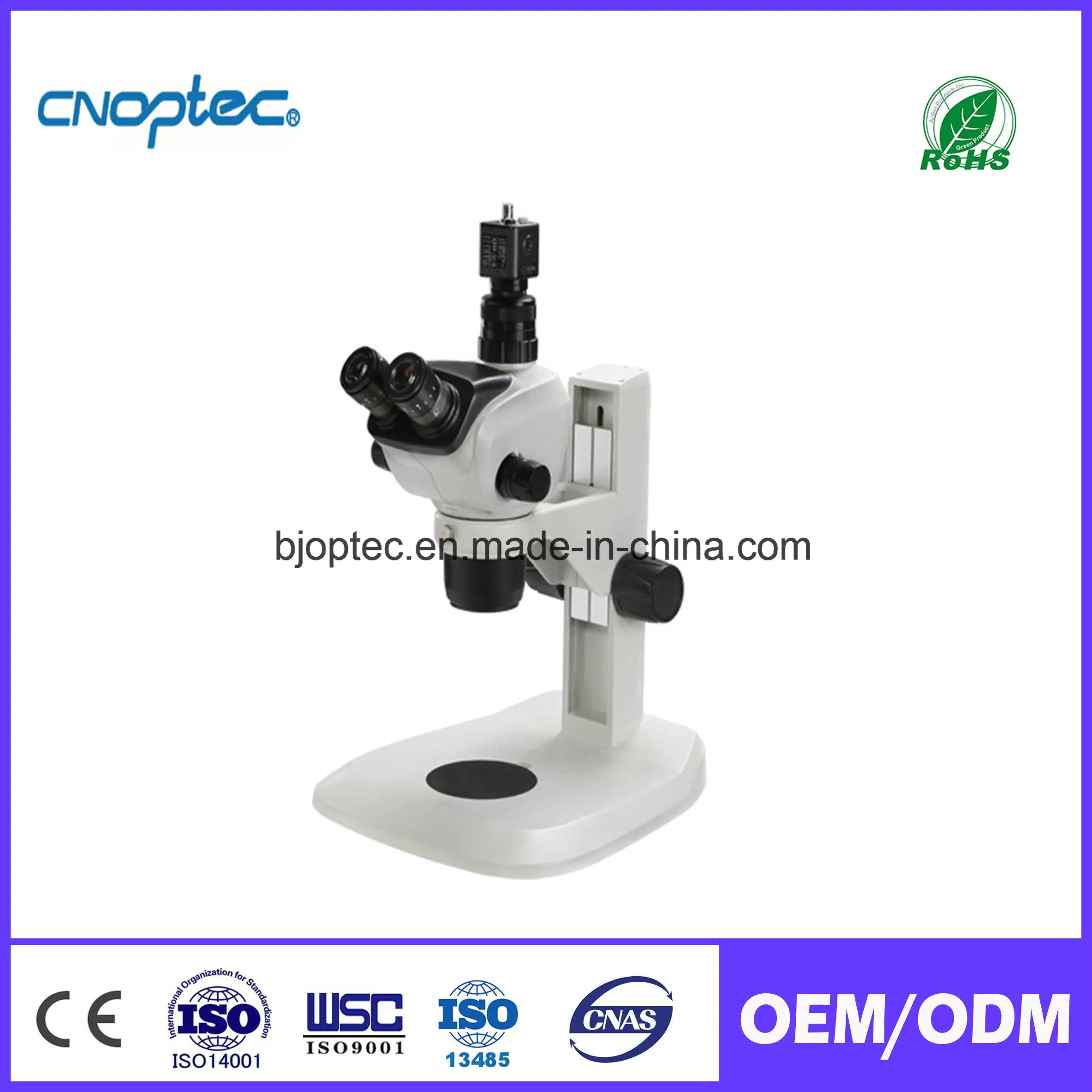

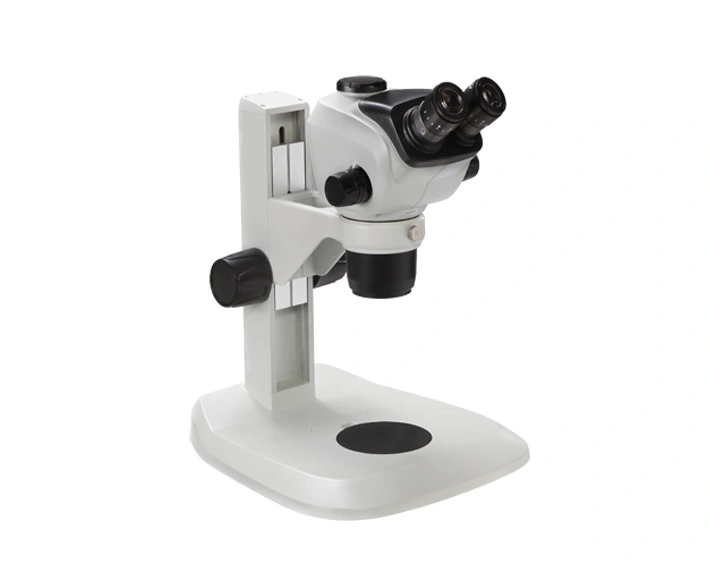

SZ 680 series Zoom-stereo Microscope
SZ 680 series zoom stereo microscope is an all-new with Galilean Optical System. The quality is up to international level. Magnification range reaches 0.68X~4.7X.

Outstanding Ergonomic Design
  • SZ680/810 35°viewing angle, SZ650 40°viewing angle, suitable for long-term sitting observation.
  • 330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen.
Top Optical & Mechanical Design
  • Greenough optical system, built-in rotating shaft zoom system.
  • No tilting Image in left &right light path in complete pupillary distance ,  No dizziness feeling after long time observing.
  • (patent number: 201320807246.0)
  • Stereo angle for left & right light path is 12°, stereoscopic effect, large viewing field, high zoom ration.
Excellent Technology And Quality
  • High resolution, large depth of field, excellent color restoration and contrast.
  • Operation comfortable(manufactured by high-precision machine, excellent assembly technology ).
  • High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts).

SZ 680 series Specifications(0.68X~4.7X.)

TypeSZ 680
Magnification Range0.68X~4.7X.
Zoom Ratio1 : 6.8
Actual Field of Image SpaceΦ23mm
Working Distance     110 mm
Stereo Angle         12°
Viewing Angle        35°
Interpupillary Distance Adjustment  50 mm to 75 mm

Auxiliary Objective0.5X0.75X1X(Built-in)1.5X2X
Working Distance189mm122mm110mm42mm36mm
Eyepieces 10X /φ23mmMagnification3.4 to 23.55.1 to 35.256.8 to 4710.2 to 70.513.6 to 94
Actual Field(mm)67.6 to 9.7945.1 to 6.5233.82 to 4.8922.55 to 3.2616.91 to 2.45
Eyepieces 15X /φ16mmMagnification5.1 to 35.257.65 to 52.8810.2 to 70.515.3 to 105.820.4 to 141
Actual Field(mm)47.06 to 6.8131.37 to 4.5323.53 to 3.4015.69 to 2.2711.76 to 1.70
Eyepieces 20X /φ12mmMagnification6.8 to 4710.2 to 70.513.6 to 9420.4 to 14127.2 to 188
Actual Field(mm)35.29 to 5.1123.53 to 3.4017.65 to 2.5511.76 to 1.708.82 to 1.28

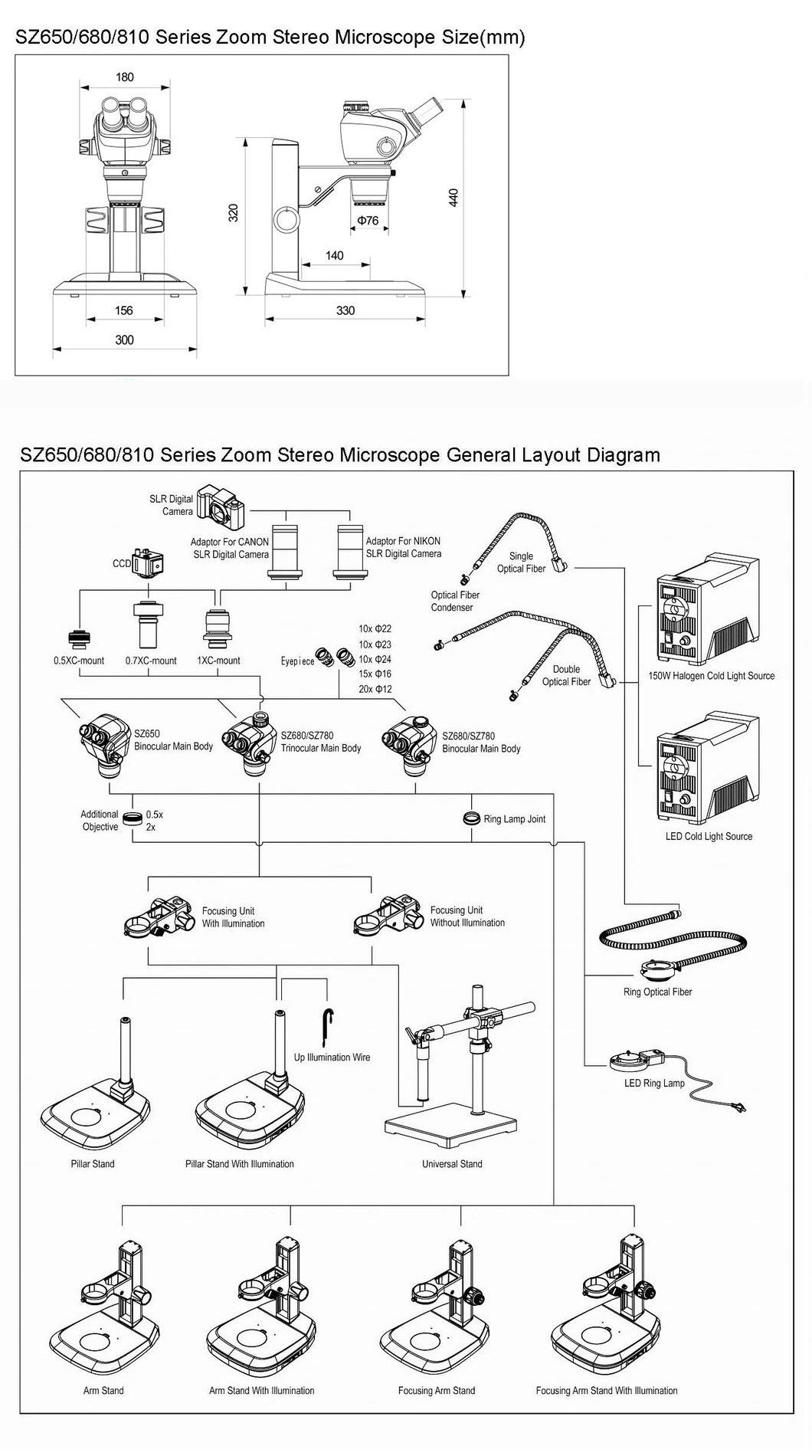

SZ650/680/810 Series Zoom Stereo Microscope Outfit
ItemsSZ650BPSZ650B2LSZ680BPSZ680B2LSZ810BPSZ810B2L
Main BodyBinocular------------
Trinocular
10XEyepiece/Φ22mm----
10XEyepiece/Φ23mm  ----
10XEyepiece/Φ24mm    ----
15XEyepiece/Φ16 mm○○○○○○○○○○○○
20XEyepiece/Φ12mm○○○○○○○○○○○○
0.5X/2X Objective
Focusing unit------------
No light-- -- --
Reflecting 3W LED -- -- --
Transmitting 3W LED -- -- --
Black & white Plate------------
Glass Plate -- -- --
Arm stand------------
Pillar stand
Focusing Arm stand
Base (330×300mm)------------
C-mount  0.5X,0.7X,1X
Note:"--" In Table Is Standard Outfits, "○" Is Optional Accessories.
