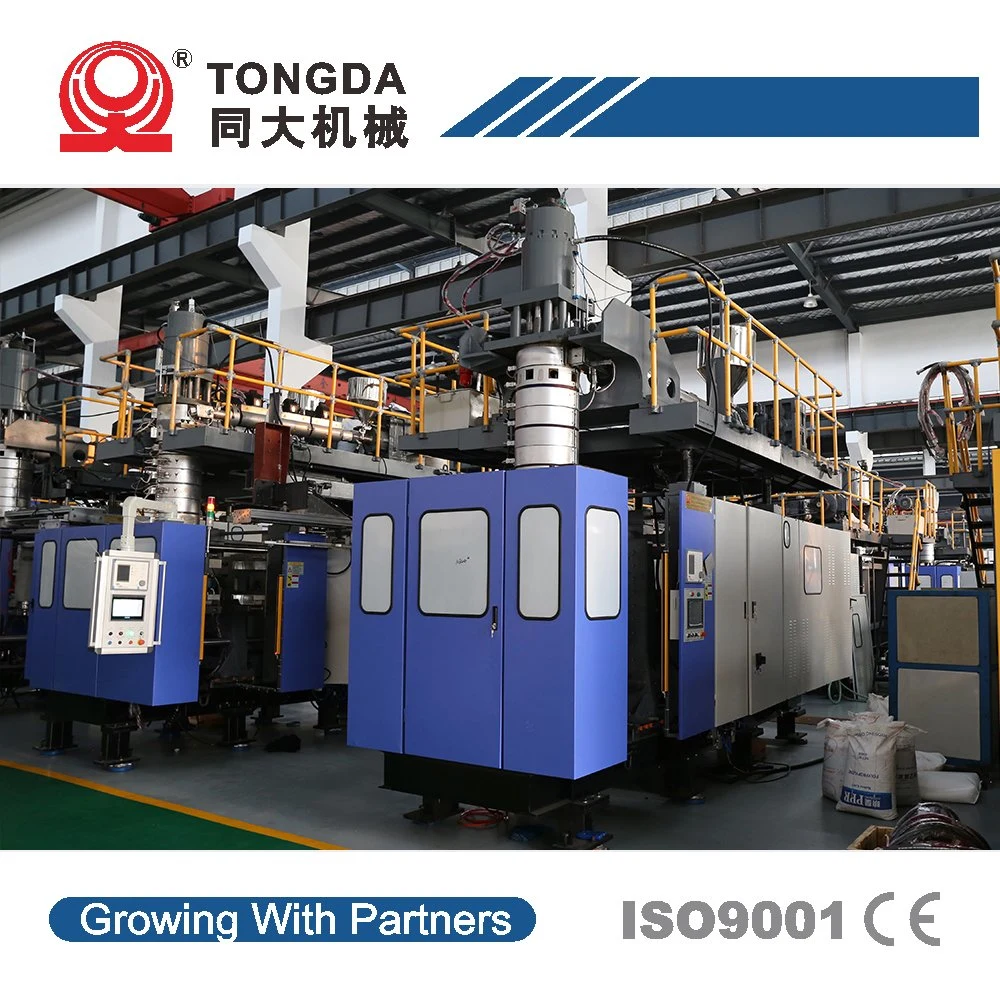

TONGDA TDB-50F Large Container Plastic HDPE Drum Making Machine with CE/ISO Certification
Product Description

TDB-50F
This machine is suitable for 20~50L product and it is bottom blow.The die-head is accumulator.It equipped with servo motor.The touch screen is integrated with the parison controller.
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.


Tongda Tdb-50f Large Container Plastic HDPE Drum Making Machine with CE/ISO Certification
Tongda Tdb-50f Large Container Plastic HDPE Drum Making Machine with CE/ISO Certification

Product Details

Tongda Tdb-50f Large Container Plastic HDPE Drum Making Machine with CE/ISO CertificationTongda Tdb-50f Large Container Plastic HDPE Drum Making Machine with CE/ISO Certification

Product Parameters

Model UnitsTDB-50F
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
The above specifications and design are subject to change without prior notice.
Specification
StationSingle/DoubleSingle
Max.product volumeL50
Dry cyclepc/h400
Output of HDPEkg/h130/160
Weight of machinekg14000
Size of machine(L*W*H)m5*2.4*3.8
Die head
Max.die diametermm350
Die head heating zone-6
Capacity of accumulator headL6.6
Die head heating powerkw21
Clamping Unit
Platen distancemm450~1000
Clamping forcekn260
Extruder Unit
Screw diametremm90
Screw length/diametre ratio-25(28)
Screw heating powerkw17.4(20.5)
No.of heating zone(screw)-4(5)
Power Unit
Hydraulic pump driving powerkw21+4
Screw motor powerkw37(45)
Total powerkw100(111.5)
Remarks
Air consumptionm³/min1
Blow pressureMap0.6
Cooling water pressureMap0.3
Water consumptionL/min85
Max size of mold(W*H)mm700*950
