16 Antennas Cellular Phone Lojack 173MHz Mobile Cellular Signal Blocker GPS Wi-Fi VHF UHF Mobile Phone Signal Blocker X16

Please contact with us at:
Mr.Jerry

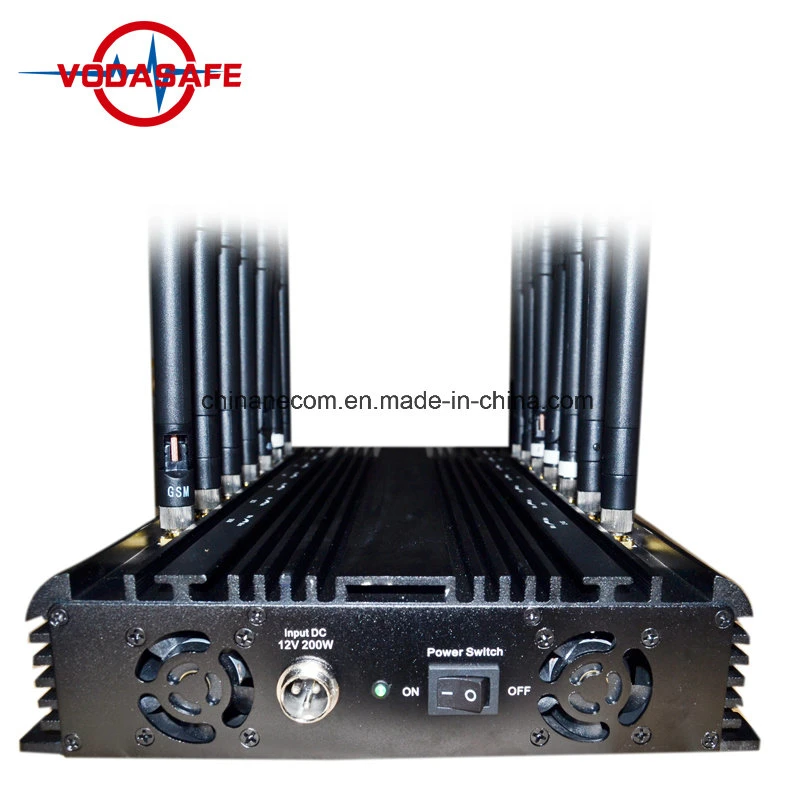

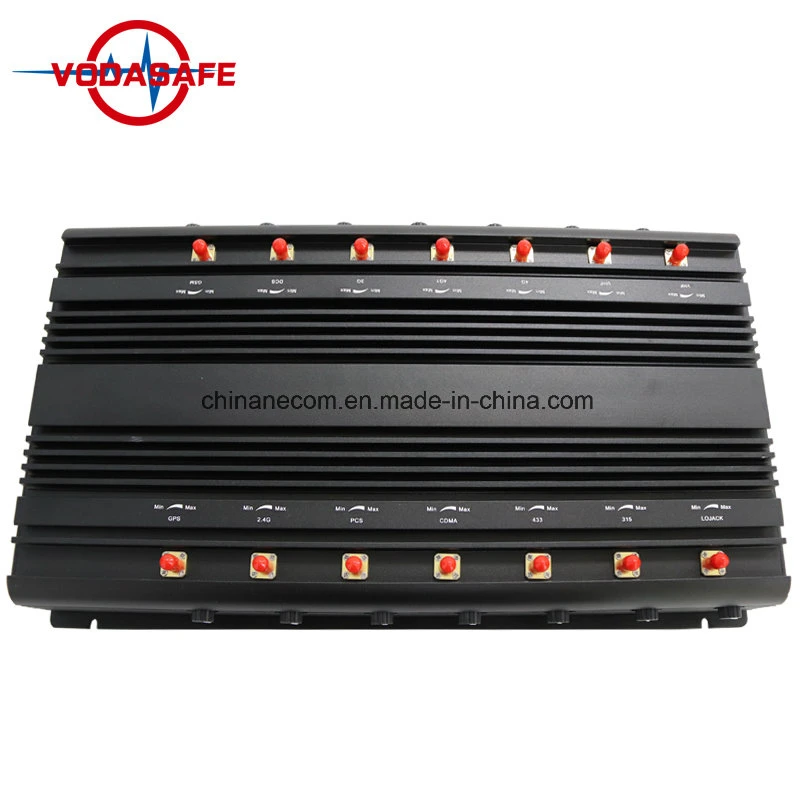

Stationary 16Bands Jammer/Blocker Vodasafe X16
Brief description:
This is a multi-Use ,powerful Jammer , This jammer provides 16 bands of coverage (see below) with a total power output of 42 Watts .
his model is specialized to coverage mobile phone frequencies used in most parts of the world countries Europe, Asia, Australia, Middle East and Africa.
this unit will jam standard GSM ,3G,  4G and 4G LTE, 4G WiMAX all types of Android phones, Tablets, Smart Phones, iPhones, GPS, Lojack Tracking devices ,remote control signals from various devices such as rc cars, rc boats, alarms, wireless sensors, amateur or professional remotely controlled toys, etc .
Creating a range of up to 60 meters in "forbidden" zone for all all mobile, wifi, rc and tracking devices. to provide you with complete coverage. giving you the privacy, security, and peace of mind that you need.

TIncluded vehicle power supply allows flexibility for you to take the unit with you and use it while mobile. prevent "leakage" of important information along the way saving you from intrusive phone calls.



Features:
*Adjustable working range you can avoid blocking adjacent areas
* multi-Use ,powerful Jammer
*Each of 16 frequency is separately and Adjustable
*Friendly use and maintenance
* 24/7hours working, Could continue to work
*Good cooling system with unique case as big heat sink and 5 fans inside, low noise
*Portability: Vehicular power cable also included Could be used in Vehicle directly jamming car bomb

Applicable place:
It can be applied in a meeting room, conference room, museum, gallery, theater, concert hall, church, temple, restaurant, classroom, training center, factory, bank, train, car, bus, etc.
Specification:
Total Outputpower:42W
Cover Radius: 10-60m(under Signal level ≤-85dBm)@according to the signal density mobile network
Jamming type: Sweep Jamming
Antenna Type: 3dBi external omni-directional
Power Supply: AC adapter (50 to 60Hz/100 to 240V AC-DC12V) with car charger
Electric Filed (SAR): Compatible with ICNIRP Standards (Human safe)
Operating Temp:-20 to +50ºC
Storage Temp:-40 to +60ºC
Humidity: 5%-80%
Dimension(LXWXH): 395 x 238x 60mm not include antennas
Inner box dimension:470x420x115mm
Weight:7kg

Notices:

1. Before linking all the antenna, power supply shall not be switched on at first.Non taking off antenna when the mainframe is in the working condition.
2. The jammer shall be installed in the position with good ventilation.And large-scale things shall be avoided to ensure to the shielding effect.
3. When use the jammer outdoors, preventing water shall be taken into consideration.
4. Antenna shall be used vertical to the ground.
5. If you used in car, please make sure the car output adapter is DC12V,The Minimum output power of storage battery is 150Watt.

Order information :
X16A: CDMA/GSM/3G/4GLTE Cellphone/Wi-Fi2.4G/Bluetooth/Walkie-Talkie/Lojack/GPSL1-L5/RC433MHz315MHz868MHz

America Type frequency for United States, Canada, Mexico ,S. America.
1. GSM850MHz:850-894MHz; 3W
2. GSM1900MHz:1920-1990MHz;3W (2GGSM/CDMA/PCS1900MHz)
3. 4GLTE700MHz:700-800MHz; 3W
4. 3G2100MHz:2100-2170MHz;3W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth2.4G:2400-2500MHz; 2W
6. 4GWiMAX/4GLTE2600MHz:2500-2700MHz;2W
7. VHF Radio:135-175MHz; 2W
8. UHF Radio: 400-470MHz; 2W
9. GPS L1:1575MHz; 2W
10. GPS L2:1227MHz; 2W
11. Lojack:173MHz; 3W
12. RC315MHz:315MHz;3W
13. RC433MHz:433MHz;3W
14. RC868MHz:868MHz; 3W
15. GPS L5:1176.45MHz;3W
16. GPSL3+L4:1379/1381MHz;3W
Total Output Power: 42W

X16E:CDMA/GSM/3G/4GLTE Cellphone/Wi-Fi2.4G/Bluetooth/Walkie-Talkie/Lojack/GPSL1-L5/RC433MHz315MHz868MHz




Europe Type frequency for Europe, Asia, Australia, Middle East, Africa.
1. GSM900MHz:925-960MHz 3W
2. GSM1800MHz:1805-1880MHz;2W (2GGSM/CDMA/DCS1800MHz)
3. 4GLTE700MHz:790-821MHz; 3W
4. 3G2100MHz:2100-2170MHz;2W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth2.4G: 2400-2500MHz; 2W
6. 4GWiMAX/4GLTE2600MHz:2620-2690MHz; 2W
7. VHF Radio:135-175MHz; 2W
8. UHF Radio:400-470MHz; 2W
9. GPS L1:1575MHz;2W
10. GPS L2:1227MHz; 2W
11. Lojack:173MHz; 3W
12. RC315:315MHz; 3W
13. RC433:433MHz; 3W
14. RC868:868MHz; 3W
15. GPSL5:1176.45MHz;  3W
16. GPSL3+L4:1379/1381MHz;3W
Total Output Power: 42W

We could supply customized service by your detail requirements about frequencies setting.
Optional Frequencies:
1.CDMA450MHz:430-450/460-470MHz
2.Wireless Camera:1.2G,5.8G

Optional Function :Remote control on/off (3-5m)

Package contents:
1pc Signal Jammer
1pc AC Charger
1pc Car Charger
16pcs Antennas

All 16 Frequency modules we can mix very flexible,.Any combinations and customizations are possible just send us your inquiry and we will give you our recommendation.
