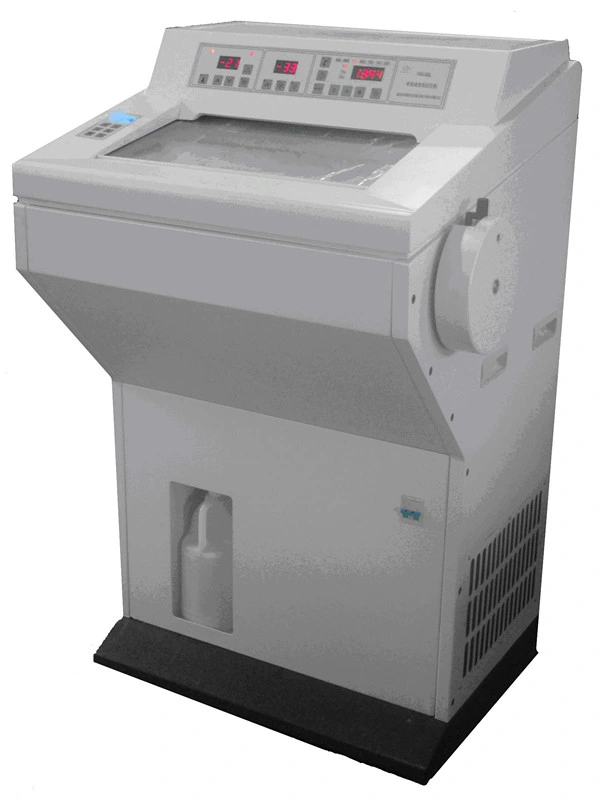

Medical Cryogenic Equipments Loratory Pathology Cryostat
model: YGQ-300L
Refrigerating System:
Box temperature: -10°C~-35°C
Fast refrigeration frame: 10 samples' loading, lowest temperature: -35°C, avoid time consuming and arduous single sample processing;
Semi-conductor refrigerating, lowest temperature: -60°C, meet the needs of fat tissue refrigeration;
CFC environmental protection refrigerant;
Program control cycling defrosting (24 hours once), and hand-operated instant defrosting.
Slicing System:
Advanced step motor to control the accuracy of slicing, repairing and sampling, to guarantee identical thickness of slices;
Optional position memory function of samples: In the process of slicing and slice drawing back, the sample automatically approaches to the cutter point, and arrives at the prescribed position through the memory function;
Sample rebound function to avoid friction of sample and knife and guarantee the best slicing quality;
New-style blade and handle can move back and forth, up and down, and can adjust angle;
Operating System:
All parameters (temperature, thickness of slice, thickness of repaired slice, real time, defrosting time) displayed by LCD, touch-tone operation;
All parameter's preset completed outside the box to prevent hand from freezing;
Key lock to avoid disoperation;
Thickness of repairing slice adjustment: 10-300um adjustable, division value: 10um, repairing mode to avoid sample loss for the rare sample;
Hand wheel position locking, tightly locked at point 8 to avoid the bit wound;
Controllable box illumination.
Draining System:
Clean and disinfection fluid as well as defrost water to be collected in the large capacity waste liquid bottle which can be loaded and unloaded conveniently.
Man-machine Engineering:
4 wheels for flexible movement, 2 wheel brakes to fix the machine's position;
All parameter's preset completed outside the box;
Slide and dyeing articles can be deposited on the platform of the box.
Main Technical Parameters:
Temperature of refrigerating box: -1°C~-30°C
Temperature of refrigerating platform: 0~-40°C
Maximum slicing area: 30mm×40mm
Slicing thickness: 1~80um, adjustable, division value: 1um
Slices thickness control interval: 1~2um
Computer control, temperature preservation, timer power on and off, automatic defrost;
Power: AC220V,50HZ
Size: 660mm×760mm×1150mm
Weight: 125KG
