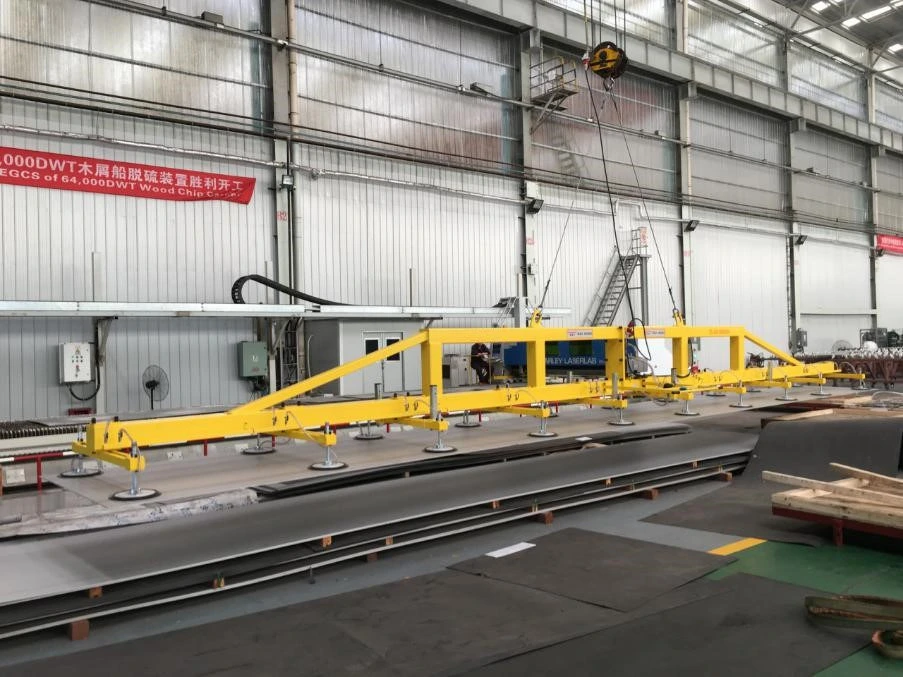

Large-sized Electrical Glass/Steel Plate Vacuum Lifter
Features
- Designed for super-size glass/steel plate
- Heavy Lifting efficient, convenient to operate and handle
- Customized No. of vacuum suction cups, working load up to 2T
- Sealed cover for components protection, suited for outdoor use
- Power-off protection and alarm function for lack of vacuum.
| Item | Spare Parts | Specification | Supplier | Qty. |
| 1 | Vacuum Pump | VT4.40,0.35kW,Max. vacuum 80% | Germany BECKER | 1 |
| 2 | Pressure Sensor | -600 mpa | TITA | 1 |
| 3 | Suction Cup | chemigum, Ф300mm | Made in China | 18 |
| 4 | Vacuum Non-returning Valve | G 1/2" | Japan SMC | 1 |
| 5 | Vacuum Filter | G 1/2" | Made in China | 1 |
| 6 | Manual Ball Valve | G 3/4",two-position two way | Made in China | 18 |
| 7 | Manual Slide Valve | G 2",two-position two way | Made in China | 1 |
| 8 | Alarm system | alarm light+buzzer | Japan Siemens | 1 |
| 9 | Electrical Control Panel | default phase protection, overload protection, leakage protection | Made in China | 1 |
| 10 | Steel Structure | welded surface spray treatment | Made in China |
Appearance Diagram
